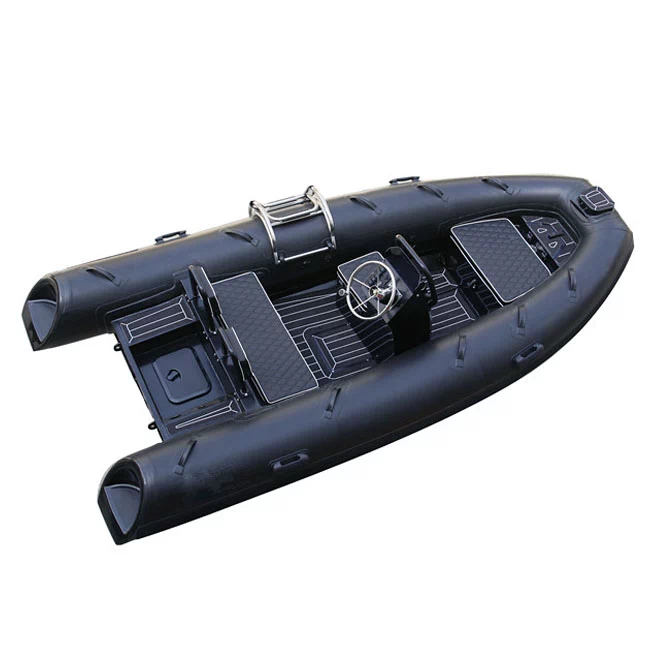

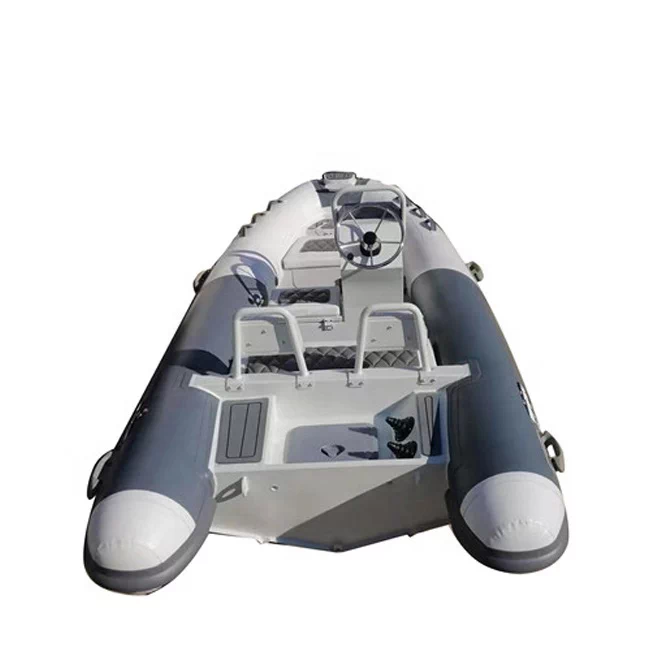

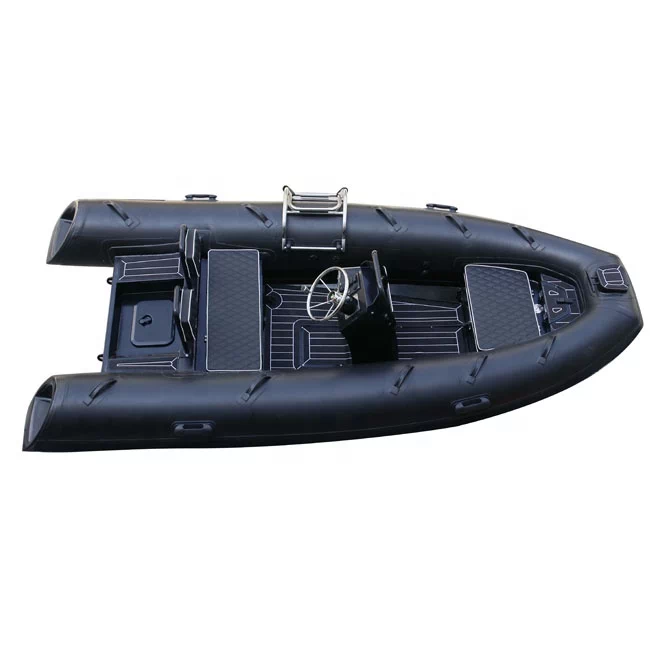

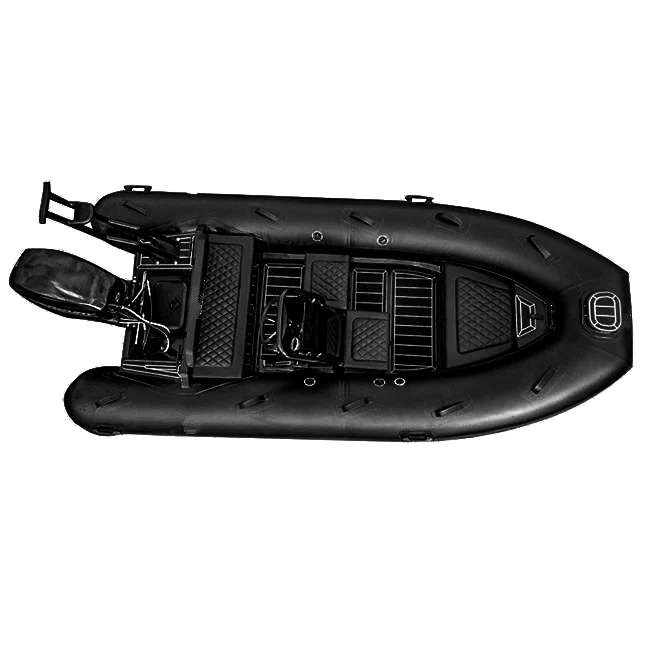

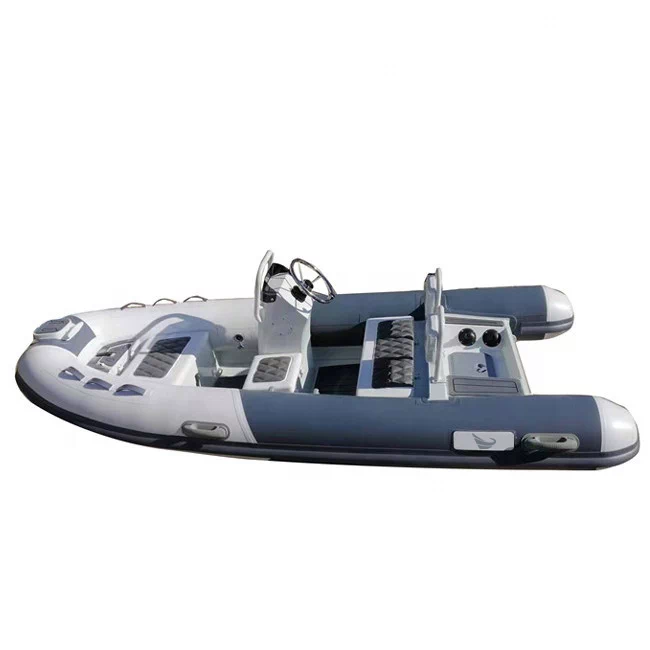

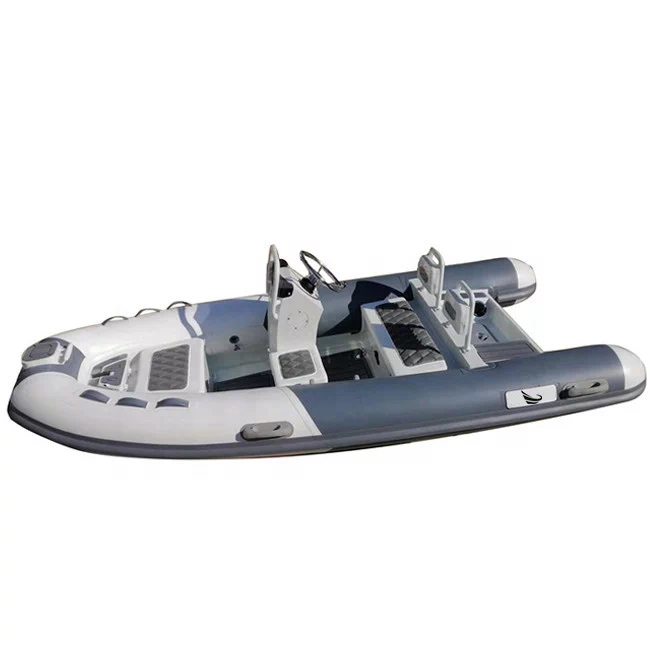

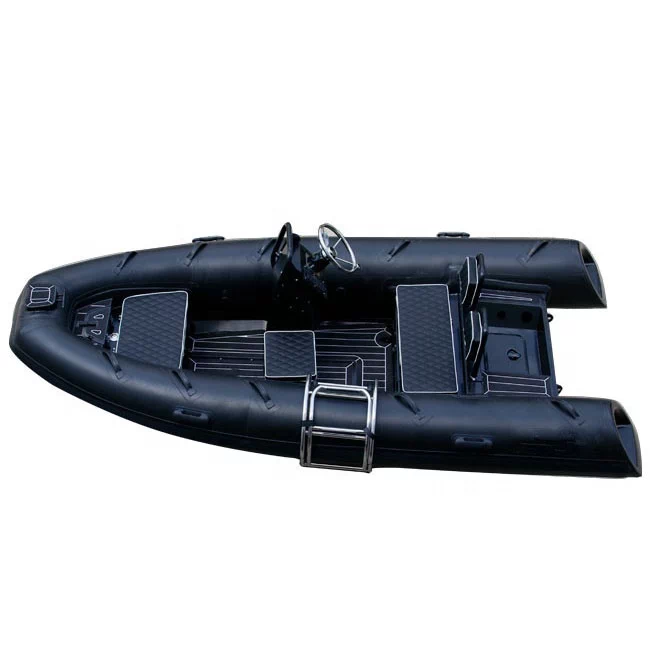

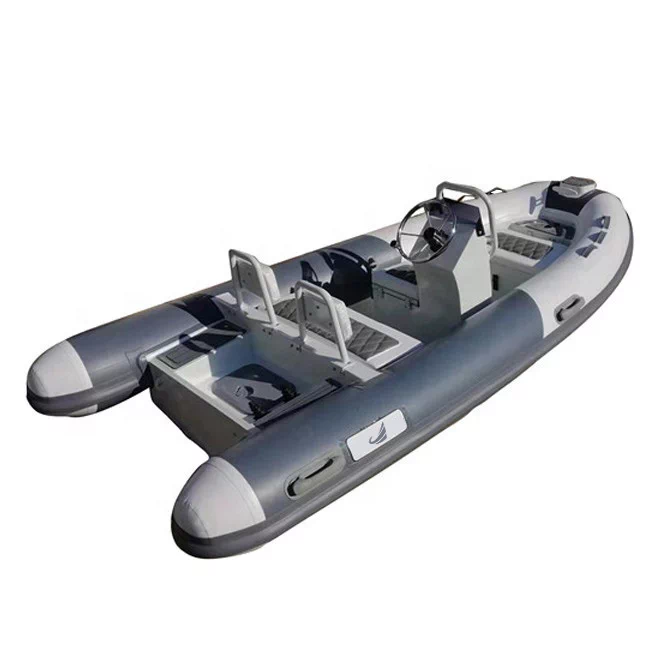

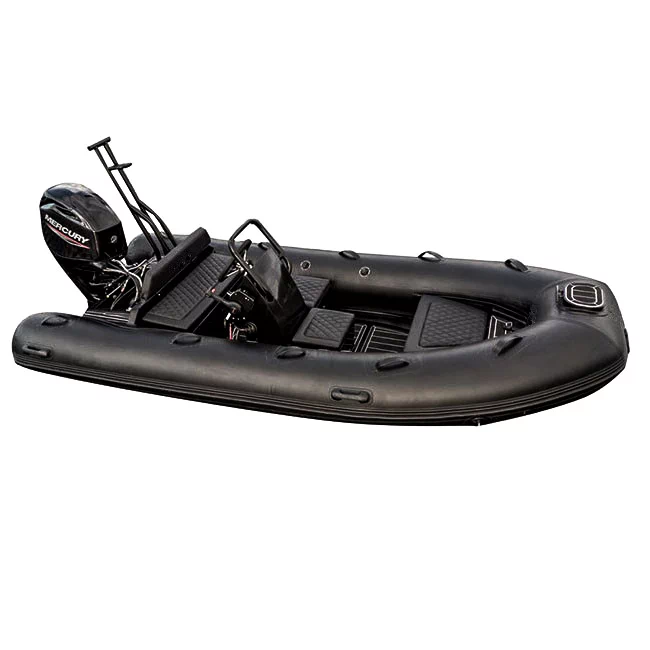

Product Description

   Category:        Aluminium Hull

   Tube material:  PVC from Mehler, Hypalon from Orca

   Model Range:   ON360 / ON390/ ON460/ ON500/ ON520/ ON560/ ON580/ ON600/ ON640/ ON680


   Standard Equipments:

   * BowStep/Cleat

   * Bow locker

   * Bow cushion

   * Tow bridle points

   * Seat&Cushion

   * Steering console

   * Integrated rear seat with cushion

   * Lifting points and towing eyes

   * Brushed foam teak finish deck

   * Heavy duty rubbing strake

   * Full length keel guard

   * Foot pump, oars, repair kit


   Optional Equipments:

   * Boat canopy/Bimini Top

   * Roll bar

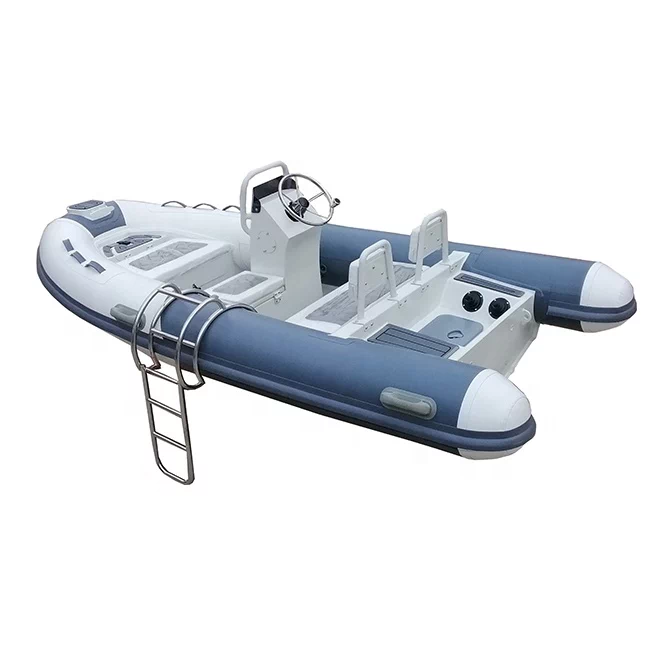

   * Ladder



   Specification of OCEAN Series:

Model ON360 ON390 ON460 ON500 ON520

Overall Length(cm)

360 390 460 500 520

Overall Width(cm)

180 180 210 222 226

Inside Length(cm)

215 245 305 340 350

Inside Width(cm)

90 90 110 120 125

Tube Diameter(cm)

45 45 50 51 52

Max. Load(kg)

600 700 810 930 960

Max. Person

5 5 9 10 10

Max. Power(hp)

40 50 80 100 100

Net Weight(kg)

190 220 330 430 460

No. of Chamber

3 3 4 5 5
Fuel Tank Volume(L) / / 70 80 90
Thickness(mm) 4 4 4 4 4
Dead Rise 17° 17° 20° 24° 24°
Transom Height(cm) 53 53 53 53 53
Shaft L L L L L
